Whether transporting coal, gold, or nickel ores, or handling various minerals like crushed stone, metallic ores, and gravel, the HOWO mine vehicle can easily cope with them all. Boasting a robust payload capacity of 30T-135T, as well as excellent safety, high attendance rate and high reliability, HOWO mine vehicle ensures your ore transportation efficient and worry-free.
Equipped with high-power engine, providing strong power output, adapting to the operation needs under complex working conditions. Optimized engine design improves fuel economy and reduces operating costs.
Reinforced vehicle frame structure enhances the rigidity and bearing capacity of the whole vehicle.
Pioneered in China, the single-sided, skeletal frame with skin structure maximizes the field of view.

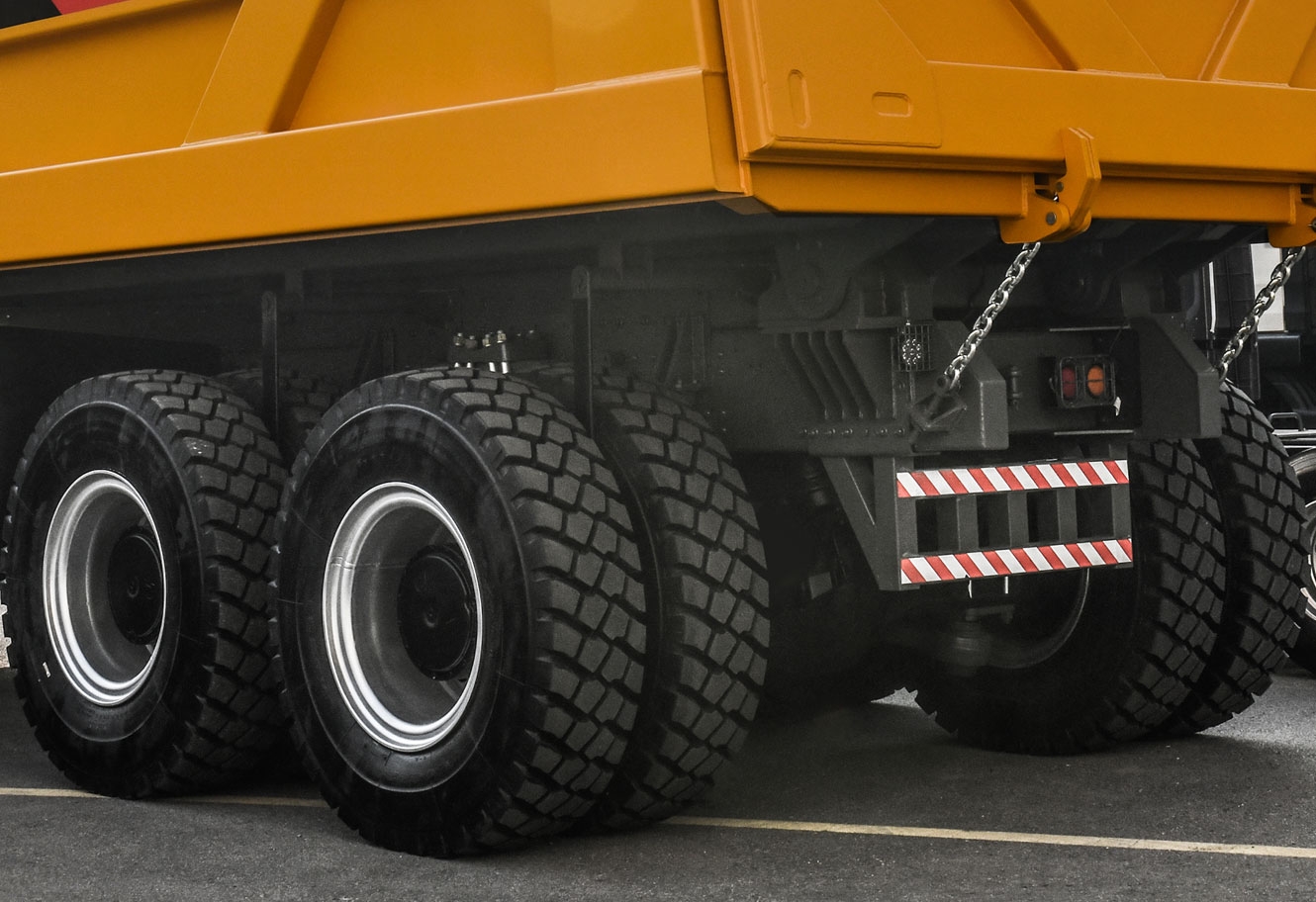

Large-size tires are suitable for a wider range of operating conditions, providing enhanced grip and load-carrying capacity.
Model | 90 | 105 | 110 | 120 | 135 |
Engine | WP12.430E201 | WP13G530E304 | WP14TG765E304 | WP14T765E304 | WP15HG770E304 |
Transmission | HW21712 | FC6A250DPR/Allison4800/8DS240 | 8DS240A | 8DS280 | 8DS280+FHB400A |
Front Axle | VGK20 | HDZ25T | HDZ25T | HDZ25T | VGK30 |
Rear Axle | MCK45 Dual Axle 10.47 | HDZ35T /HDZ40T | HDZ40T | HDZ40T | MCK50ZG |
Chassis/Frame | Double-layer Frame(10+10/380) | Double-layer Frame(10+10/380) Double-layer Frame(12+12/380) |
Double-layer Frame(12+12/380) | Double-layer Frame(12+12/400) | Double-layer Frame(12+12/430) |
Suspension | High-Strength Suspension Large Damping Shock Absorption System | Front Suspension: Air-Oil Suspension/Leaf Spring Suspension Rear Suspension: Integrated Balanced Suspension |
Front Suspension: Air-Oil Suspension Rear Suspension; Integrated Balanced Suspension |
Front Suspension: Air-Oil Suspension Rear Suspension; Plug-in Connection Structure, Large Shaft Diameter Balance Shaft |
Front Suspension: Air-Oil Suspension Rear Suspension; New Integrated Triangular Push Super-Strong Rear Balanced Suspension |
Steering System | ZF8118(BOSCH)Mechanical Power Steering | Full Hydraulic Steering | Full Hydraulic Steering | Full Hydraulic Steering | Full Hydraulic Steering |
Tires | Front 14.00R25 Rear 14.00-25 |
16.00R25 | 16.00R25 | 16.00R25 | 16.00R29 |
Heaped Capacity (m³) | 32 | 35/38 | 38 | 42 | 50 |
Application Scenarios | Application scenarios include small-scale open-pit coal mines, metal mines, sand and gravel aggregate mines, metal ore, earth and rock stripping, and limestone transportation | Application scenarios include small-scale open-pit coal mines, metal mines, sand and gravel aggregate mines, metal ore, earth and rock stripping, and limestone transportation | Application scenarios include medium-sized open-pit iron mines, earthwork stripping operations | Application scenarios include medium-sized open-pit iron mines, earthwork stripping operations | Application scenarios include large-scale open-pit mines, heavy-load uphill conditions, mainly transporting earth and rock |
