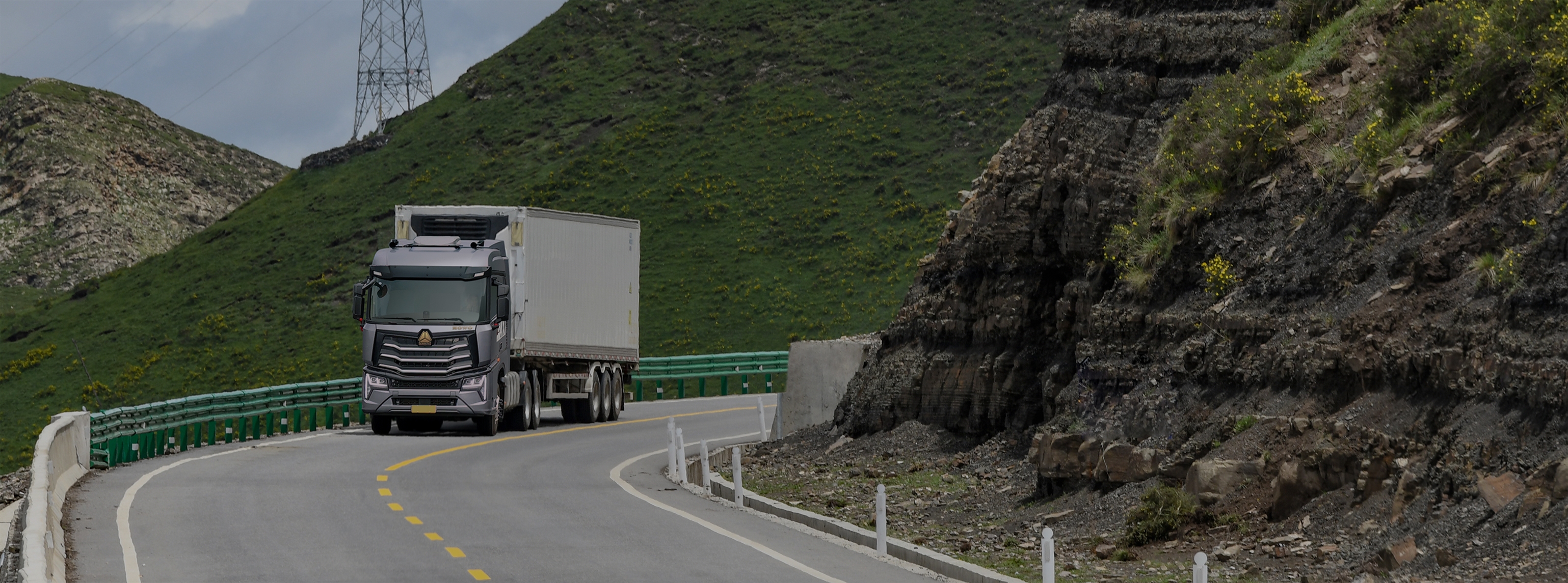

Super Cost-Effective HOWO-MAX

The highly cost-effective HOWO-MAX offers you exceptional comfort, reliability, and economic benefits. Its meticulous design not only enhances the driving experience but also optimizes operating costs, making it the ideal choice for efficient transportation.

Overview
Parameters

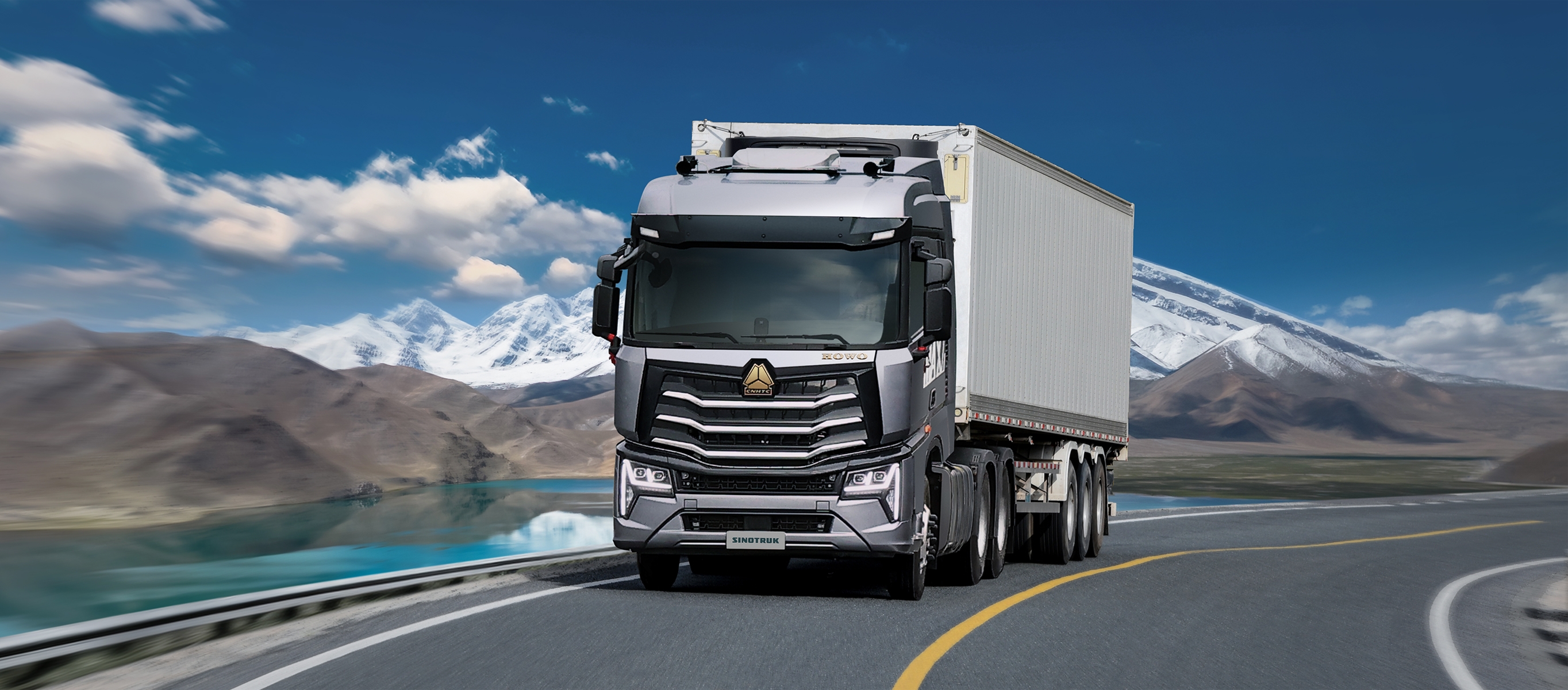

Striking Modern Appearance
Striking Modern Appearance

The front fascia of the HOWO-MAX seamlessly integrates traditional Chinese elements with contemporary design trends.

When you drive the HOWO-MAX on the highway, it is sure to capture everyone’s attention.

  • Cab
    Type MAX-E MAX-W MAX-L
    Main Dimensions
    Exterior Length 2310mm 2310mm 2080mm
    Exterior Width 2498mm 2498mm 2498mm
    Interior Length / / /
    Interior Width 2153mm 2153mm 2153mm

    Floor-to-roof height

    (Legroom)

    1970mm 1690mm 1970mm

    Floor-to-roof height

    (Cabin center height)

    1860mm 1580mm 1860mm
    Bunk
    Quantity 2 1 2
    Lower Bunk Length 2210mm 2210mm 2210mm
    Lower Bunk Width 850mm 850mm 600mm
    Height from Lower Bunk to Upper Bunk
    Upper Bunk Length 2000mm Without Upper Sleeping Berth 2000mm
    Upper Bunk Width 680mm 600mm
    Height from Upper Bunk to Cab Ceiling 565mm 565mm
  • Engine
    Model Layout Displacement (L) Power (HP)
    MC07 Inline/Six-Cylinder 6.87 240/280
    MC07H Inline/Six-Cylinder 7.36 350
    MC11 Inline/Six-Cylinder 10.518 350/360/400/430/440/460
    MC13 Inline/Six-Cylinder 12.419 480/500/540
    MT13 Inline/Six-Cylinder 12.419 440/460
    WP7H Inline/Six-Cylinder 6.8 270
    WP8 Inline/Six-Cylinder 7.8 340
    WP8T Inline/Six-Cylinder 8.24 360
    WP10 Inline/Six-Cylinder 9.726 380
    WP10H Inline/Six-Cylinder 9.5 350/400
    WP10.5H Inline/Six-Cylinder 10.5 460
    WP12 Inline/Six-Cylinder 11.596 400/430/460
    WP13 Inline/Six-Cylinder 12.54 480/500/530/550
    WP13T Inline/Six-Cylinder 12.9 530
    WP14T Inline/Six-Cylinder 13.5 580
    WP15T Inline/Six-Cylinder 14.6 580
    WP13NG Inline/Six-Cylinder 12.54 430/460
    WP15NG Inline/Six-Cylinder 14.6 530
  • Transmission
    Model Input Torque(Nm) Number of Gears First Gear Ratio
    HW11708STC(L) 1200 8 9.263
    HW13709XSTC(L) 1500 9 9.509
    HW13709XSTC2(L) 1400 9 11.000
    HW16709XSTL 1650 9 15.117
    HW19709XST 1900 9 15.280
    HW19710 1900 10 14.283
    HW25712XSL 2500 12 14.941
    HW25712XSJ 2500 12 14.941
    HW25712XSCL 2500 12 11.697
    HW25712XSCJ 2500 12 11.697
    HW25712XSTL 2500 12 14.941
    HW25712XSTC(L) 2500 12 11.697
    HW25712XST 2500 12 14.91
    HW25716XSCL 2500 12 12.960
    HW25716XSTCL 2500 16 12.960
    HW10C 1650 10 10.728
    HW12 2500/2750 12 15.315
    HW12C 2500/2750 12 11.834
    HW16 2500/2750 16 15.628
    HW16C 2500/2750 16 12.960
    ZF16S2230TO 2200 16 13.805
    ZF16S2231TO 2200 16 13.805
    ZF16S2530TO 2500 16 13.805
    ZF16S2531TO 2500 16 13.805

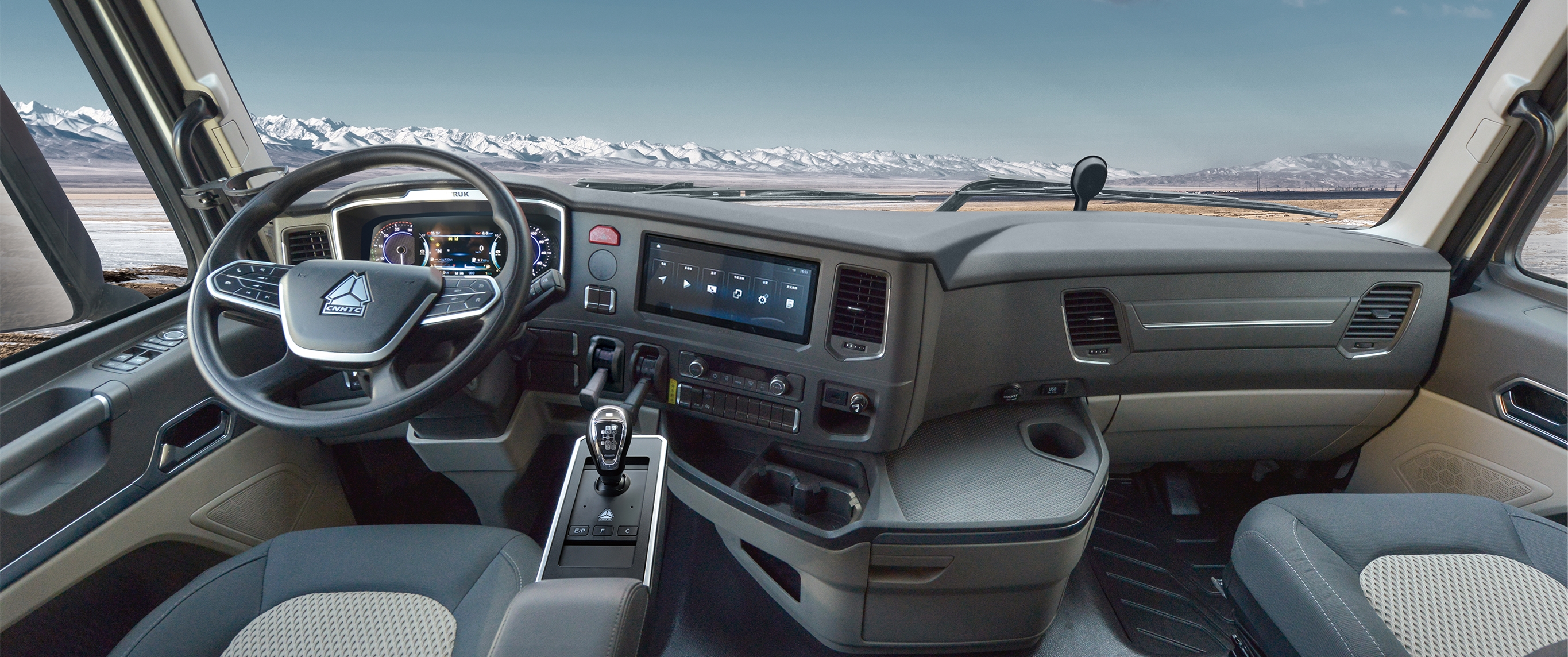

All-New Interior for a Comfortable Experience
All-New Interior for a Comfortable Experience

The wraparound dashboard and workstation are ergonomically designed. Eco-friendly materials are carefully selected for a fine texture and enhanced durability. The innovative color scheme exudes youthful energy while elevating the overall sense of quality. A 12.3-inch floating central control screen integrates multiple practical functions, including WiFi, Bluetooth connectivity, intelligent voice interaction, fault diagnosis, remote vehicle monitoring, and smart communication.

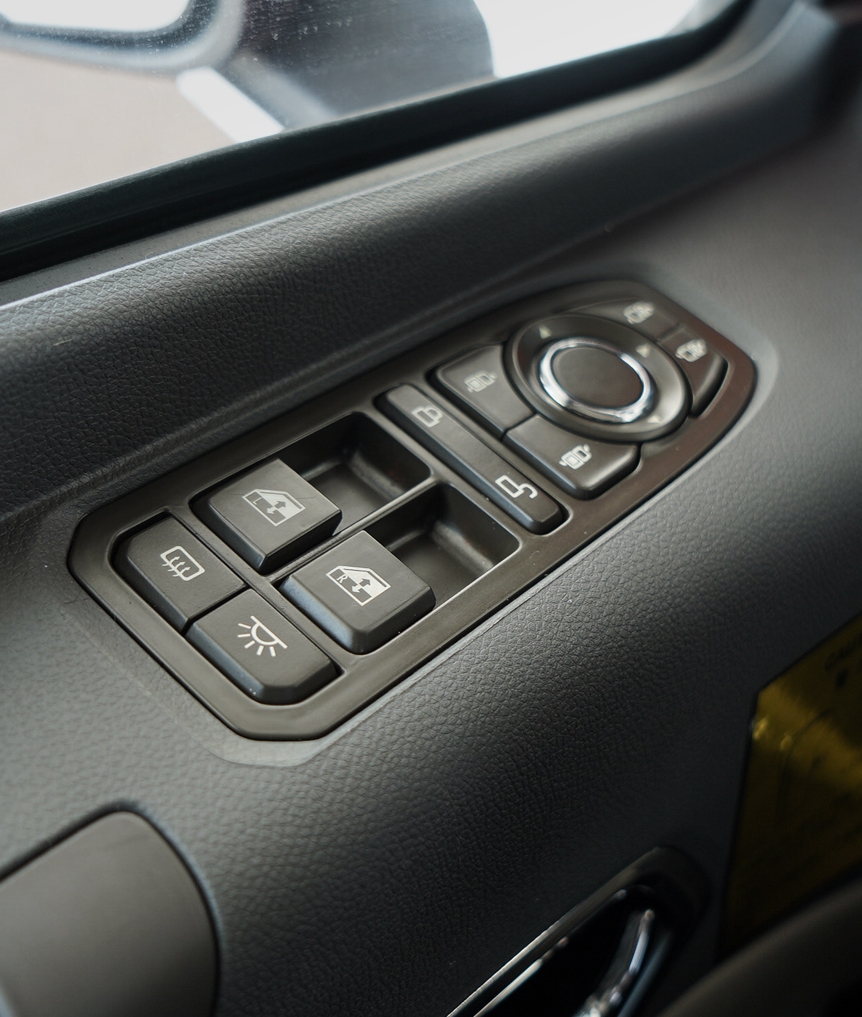

Convenient Operation
Convenient Operation

The door panel is equipped with standard functions such as central locking, one-touch window operation, and power-adjustable mirrors. Additionally, four practical buttons for cab lifting, engine start/stop, and hazard light control are thoughtfully placed at the bottom of the door. This design allows the driver to perform these functions effortlessly without leaving the seat, making operations more convenient.

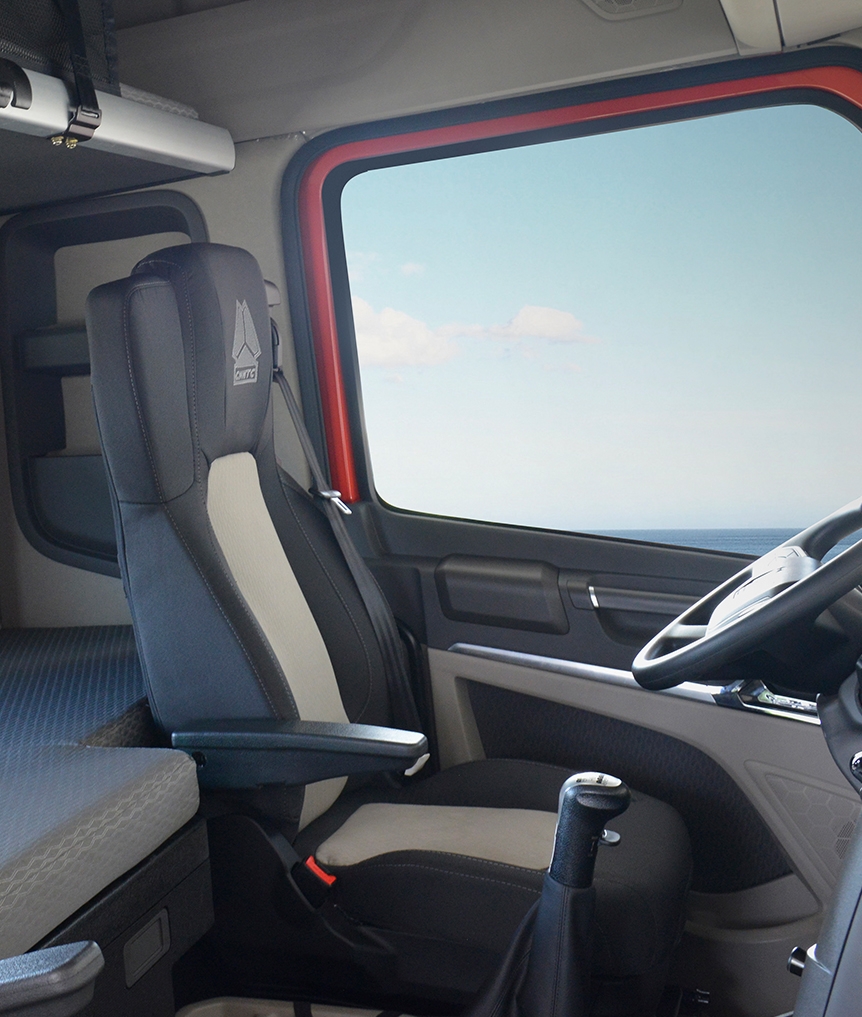

Air Suspension Seat
Air Suspension Seat

The standard air suspension seat comes with ventilation, one-touch adjustment, tilt adjustment, and lumbar support. For higher-end models, seat heating and massage functions are available as optional upgrades.

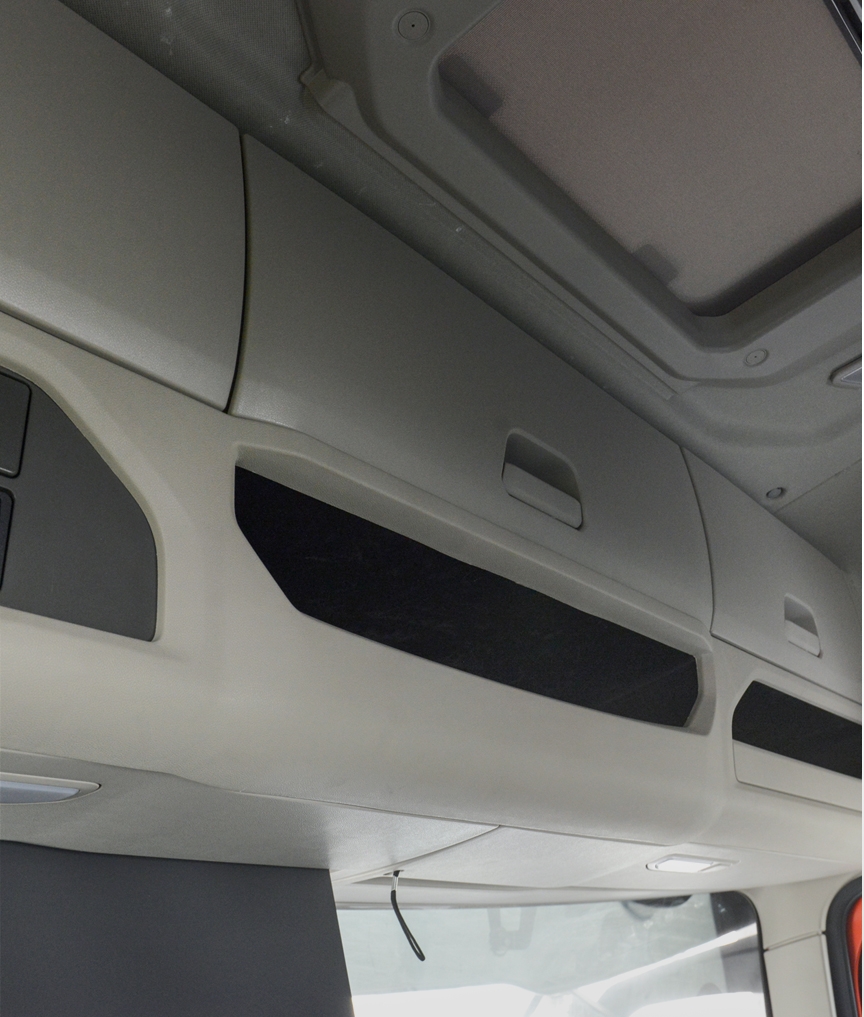

Spacious Interior
Spacious Interior

The cab features a flat-floor design with an interior height of up to 1,940mm, providing ample standing and movement space. Additionally, the truck is equipped with an impressive 623L storage capacity, allowing you to carry more essential items for long-distance journeys with ease.

Efficient and Reliable Powertrain

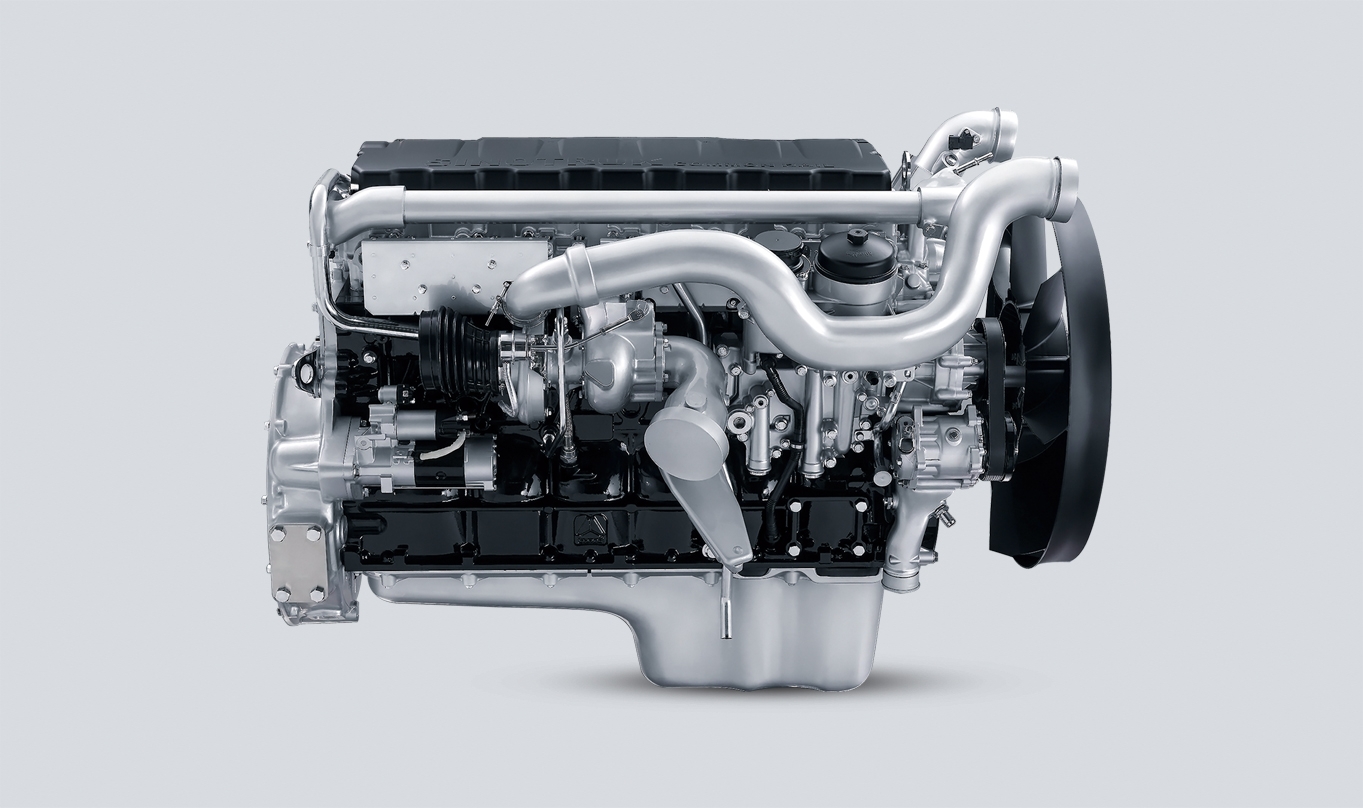

  • Engine
    Engine

    Powered by the high-performance, fuel-efficient MC series and competitively strong WP series engines, the HOWO-MAX offers a wide range of power outputs to meet different operational needs. The B10 engine lifespan reaches up to 1.5 million kilometers.

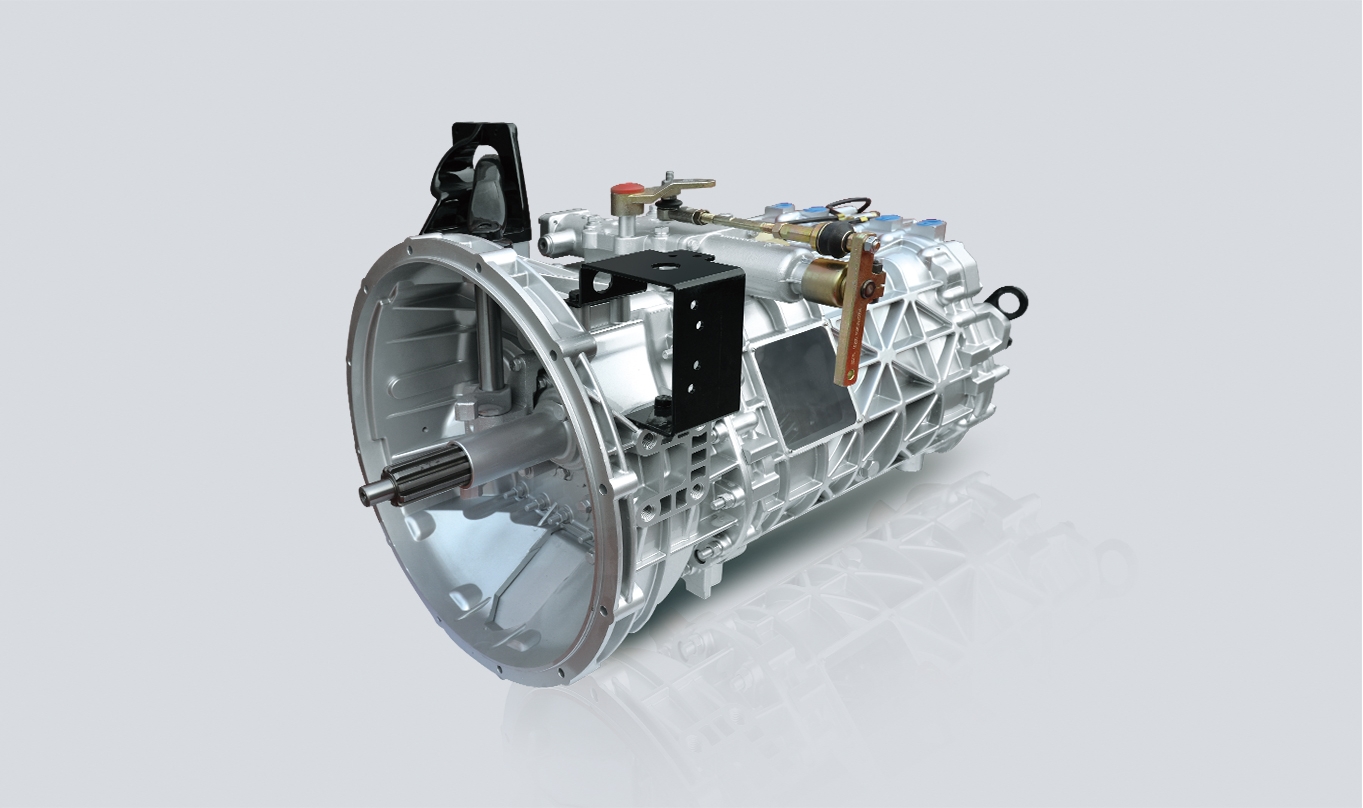

  • Transmission

    The upgraded transmission system features optimized shift logic, faster response, and improved fuel efficiency, ensuring a smoother and more reliable driving experience.

    Transmission

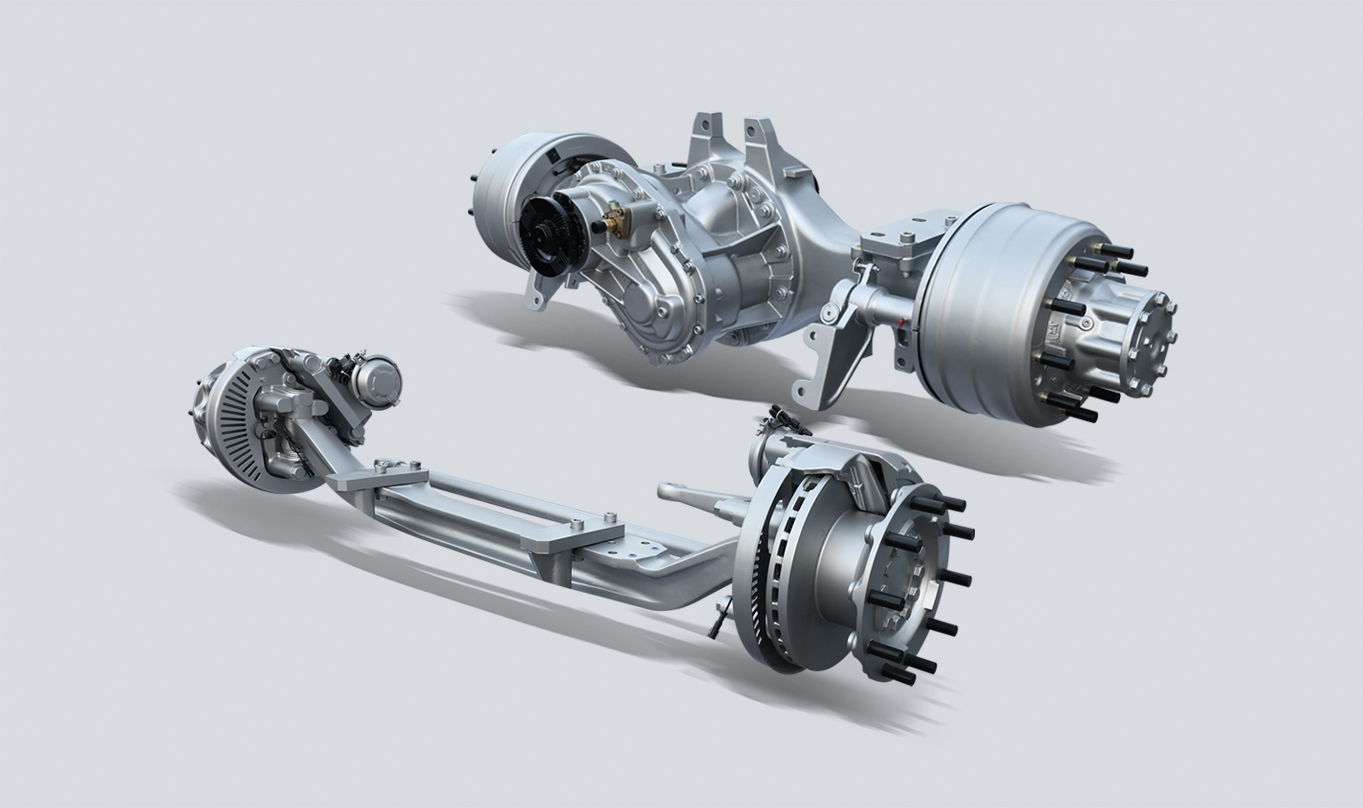

  • Axle

    The drive axle main reducer adopts Oerlikon high-contact ratio gears, achieving a transmission efficiency of up to 98.6%.

    Axle

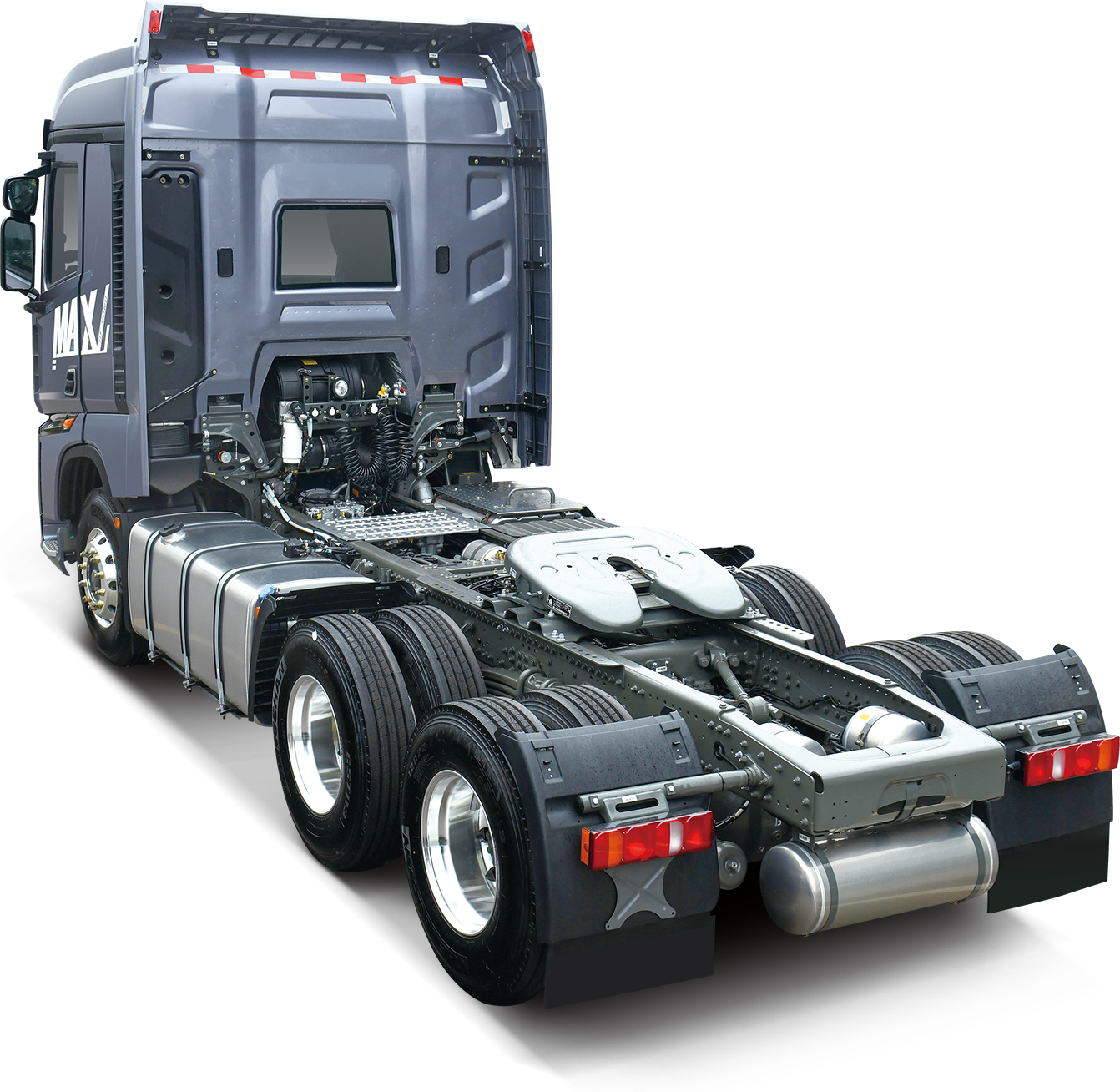

  • Lightweight and Comfortable Suspension System

    In collaboration with internationally renowned company SACHS, the chassis and cab damping system have been finely tuned to provide optimal shock absorption, significantly enhancing overall ride comfort.

    The rear segmented balanced suspension adopts a rubber bearing structure to improve vehicle stability.

    With a lightweight balance shaft assembly, lightweight cast crossbeam, and integrated axle structure, the overall vehicle weight is reduced.

    Lightweight and Comfortable Suspension System
#
