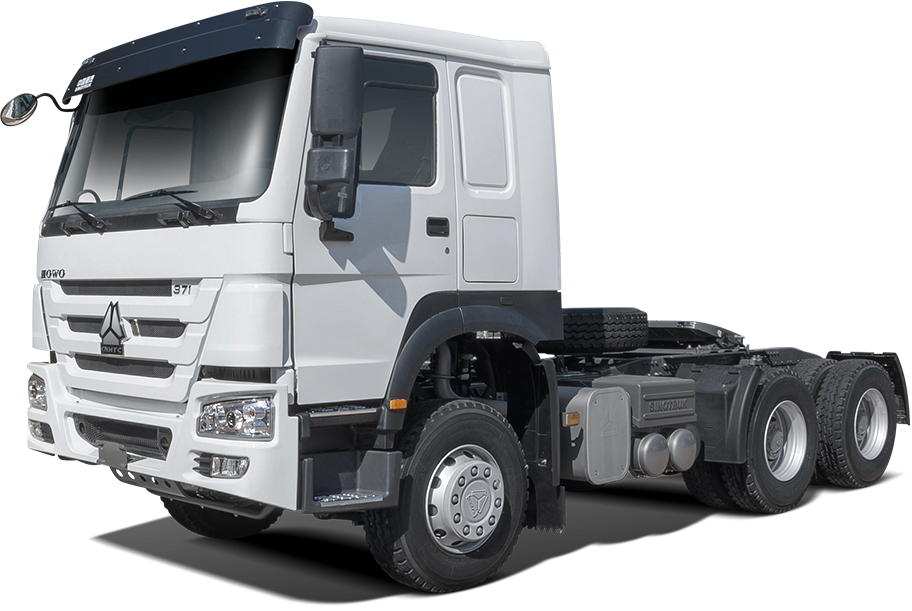

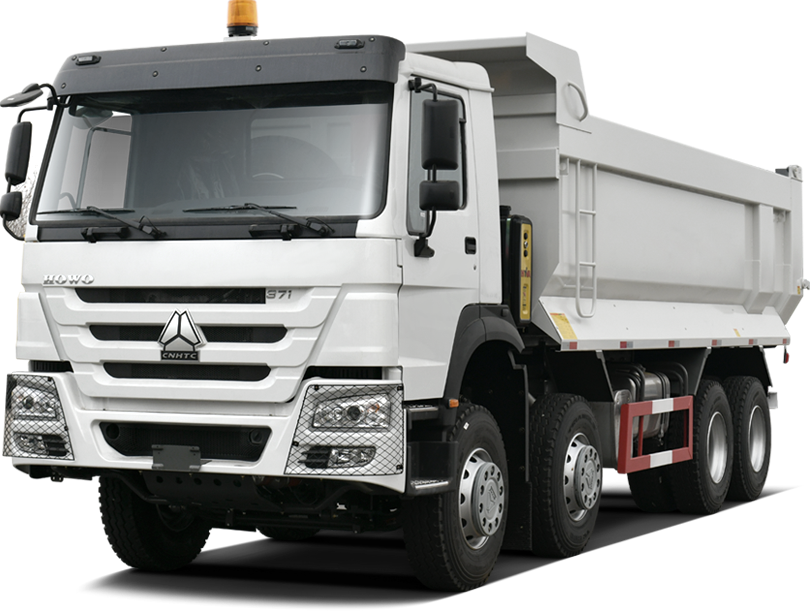

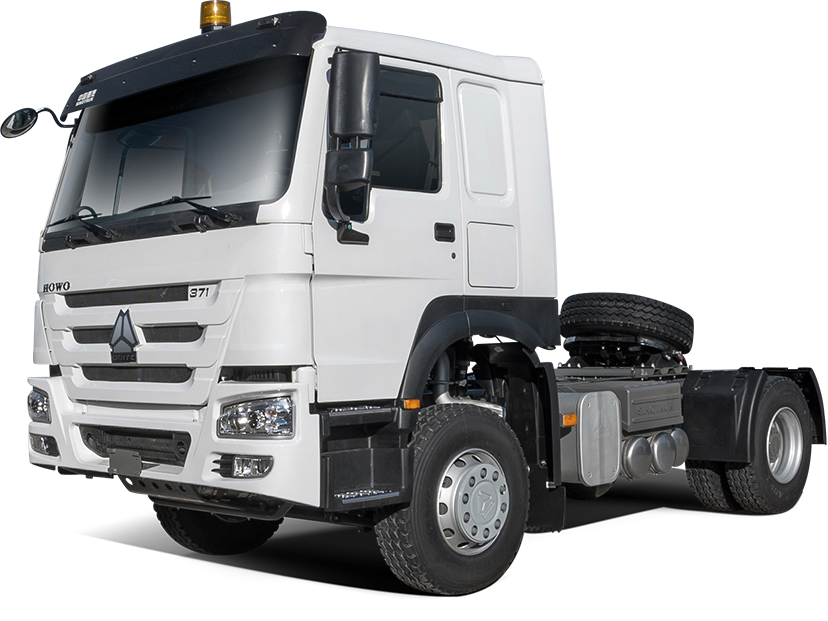

HOWO-7: Fully Equipped to Face the Toughest Working Conditions

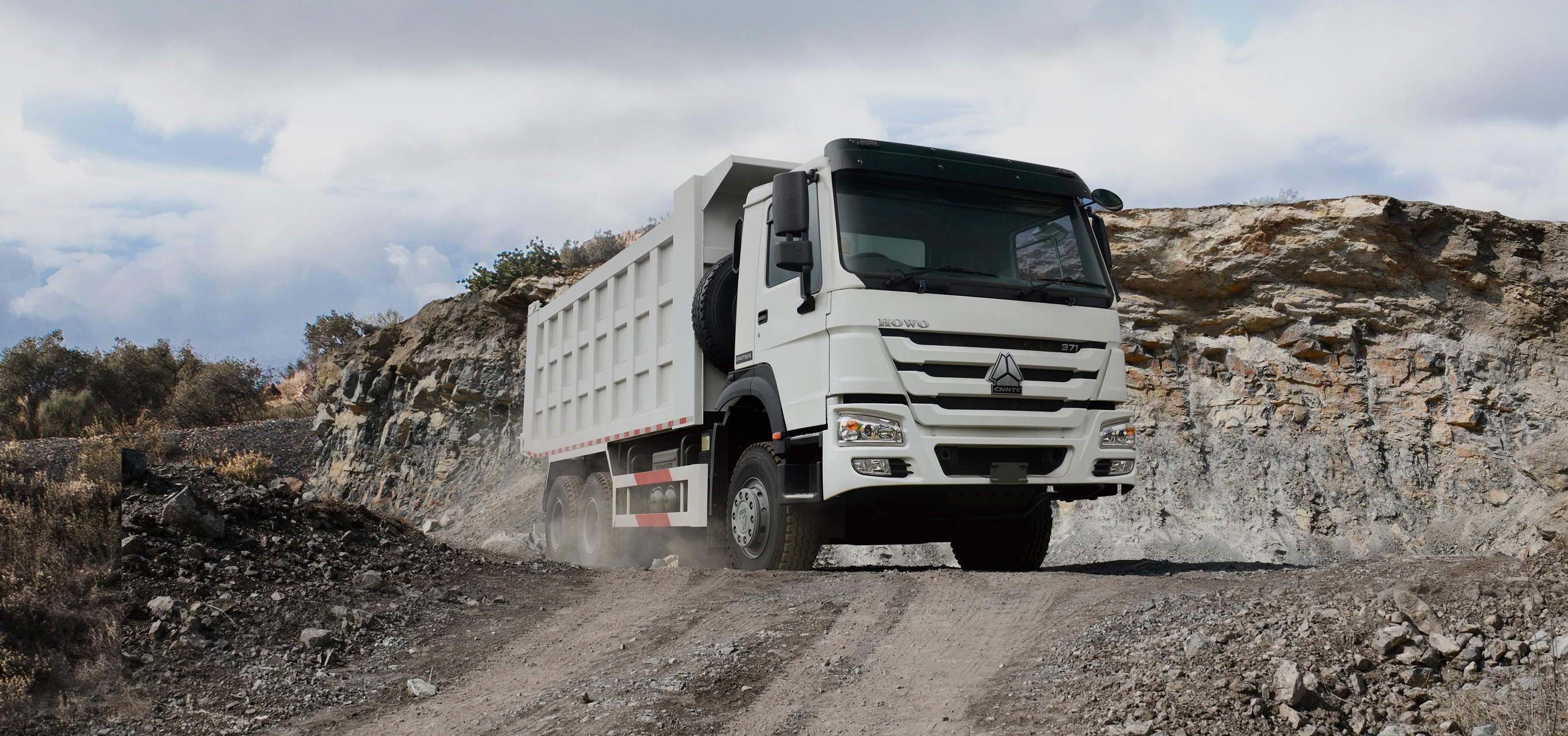

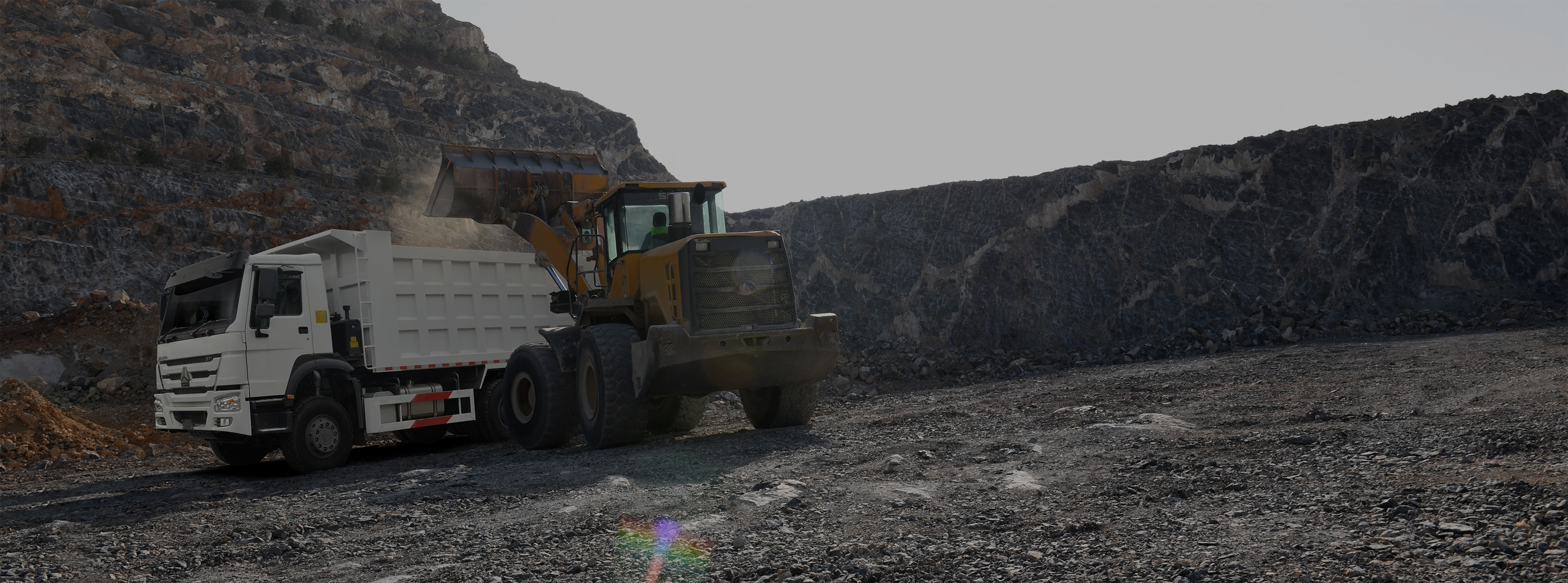

The HOWO-7 truck excels in challenging environments like construction sites and mines, thanks to its strength, ruggedness, and durability.

In harsh working environments, HOWO-7 is fully equipped to face the toughest working conditions.

Overview
Parameters
A Closer Look
1
  • Cab

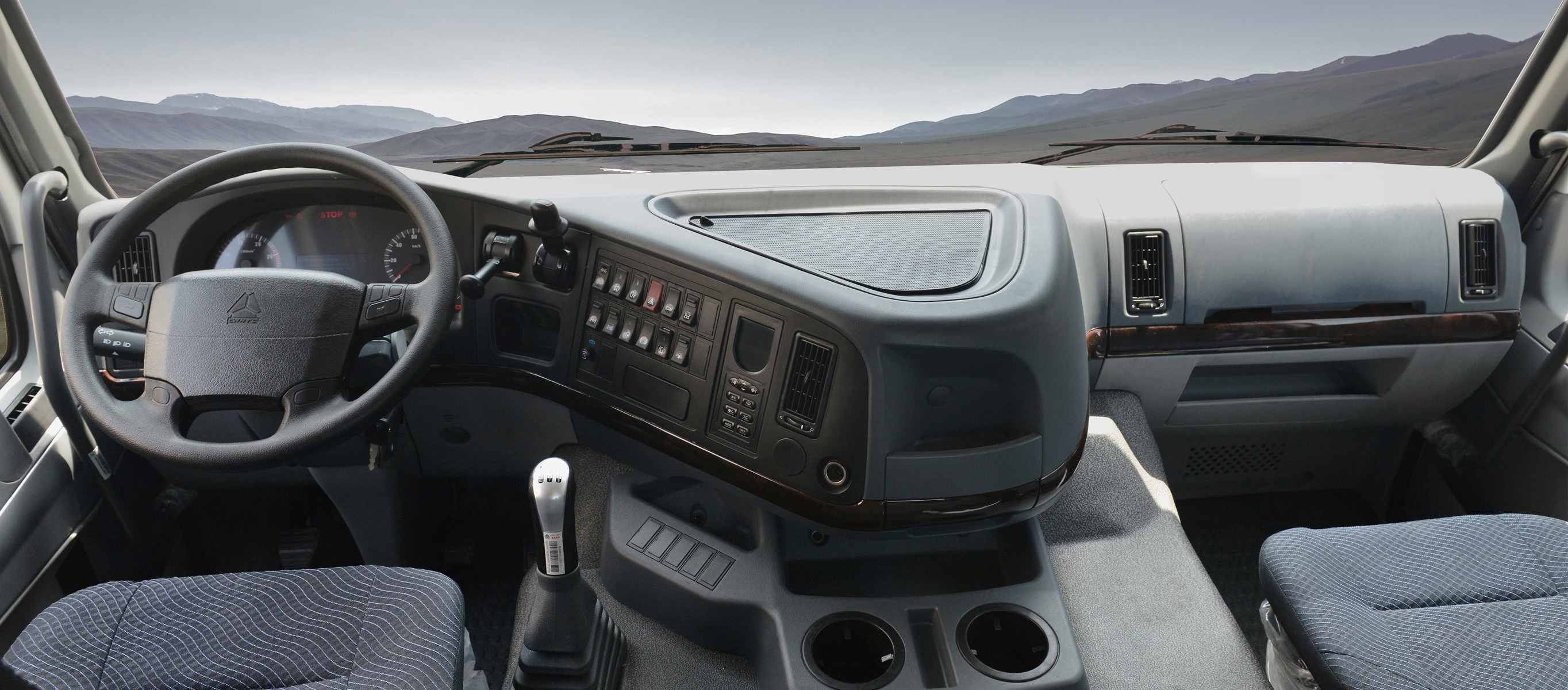

    HW79 Complies with the world's most stringent Swedish collision regulations, safe and reliable. An expanded field of view combined with a more logically organized interior layout creates a better driving experience.
    HW76 Building upon the strengths of the HW79 cabin, this model offers high ground clearance, superior maneuverability, and adaptability to diverse and challenging work environments. The smaller frontal area of the cabin contributes to increased fuel economy and greater cost-effectiveness. The HWT6 cabin is undoubtedly the optimal choice for medium and short-distance transportation.
    HW70 Compact size, 500mm shorter than the HW76 cabin, facilitating chassis superstructure installation.
    Suitable cabins for on-road vehicles are the HW76 and HW79; Suitable cabins for construction vehicles are the HW70 and HW76.
    Type HW79 HW76 HW70

    Main Dimensions

    Exterior Length 2148mm 2148mm 1648mm
    Exterior Width 2435mm 2435mm 2435mm
    Interior Length 2025mm 2025mm 1525mm
    Interior Width 2130mm 2130mm 2130mm

    Floor-to-roof height

    (Legroom)

    2190mm 1600mm 1600mm

    Floor-to-roof height

    (Cabin center height)

    1673mm 1075mm 1075mm

    Bunk

    Quantity 2 1 -
    Lower Bunk Length 2100mm 2100mm

    Lower Bunk Width 610mm 610mm

    Height from Lower Bunk to Upper Bunk 590mm 765mm

    Upper Bunk Length 2100mm

    Upper Bunk Width 600mm

    Height from Upper Bunk to Cab Ceiling 705mm

  • Engine
    Model Layout Displacement(L) Power(HP)
    WP10 Inline/Six-Cylinder  9.726 300/340/380/336/350
    WP12 Inline/Six-Cylinder 11.596 400 /430
    WP13NG Inline/Six-Cylinder 12.54 430
  • Transmission
    Model Input Torque(Nm) Number of Gears First Gear Ratio
    HW15710 1500 10 14.283
    HW19710 1900 10 14.283
    HW19712 1900 12 15.012
    HW25712XSJ 2500 12 14.941
    HW16709XST 1600 9 15.117
    HW19709XST 1900 9 15.280
    HW25712XST 2500 12 14.941
    HW19712C(L) 2100 12 11.795
    HW25712XSTL 2500 12 14.941
    HW25712XSTC 2500 12 11.697
    HW19710C(L) 2100 10 10.728
    HW25712XSJ 2500 12 13.148
2
Cab
Cab

The cabin's body is constructed with a one-piece steel frame, providing robust strength, rigidity, and superior resistance to impacts and external forces. Its safety performance has been proven through stringent crash testing.

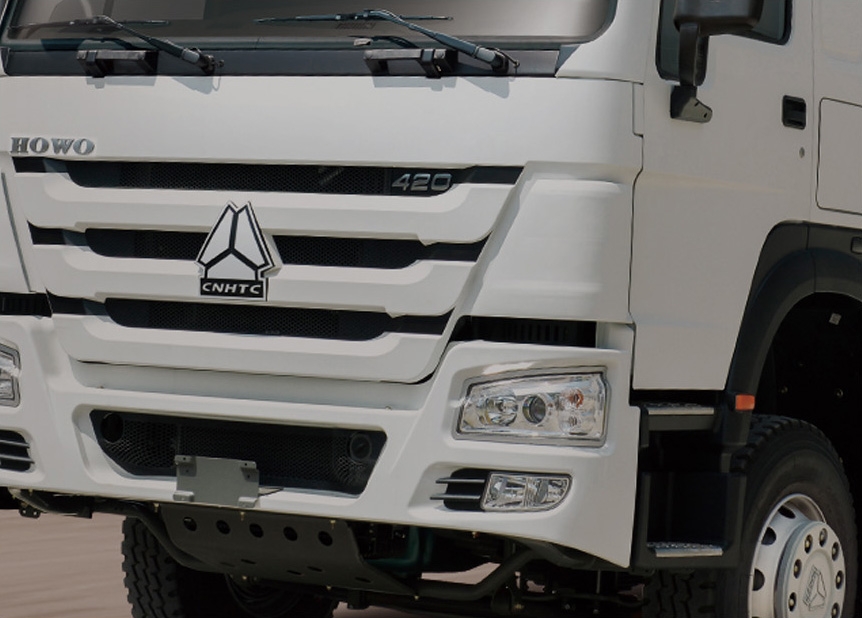

The three-level air intake grille makes the classic front mask more layered. Non-slip boarding pedals and 90° opening doors facilitate drivers getting on and off the vehicle.

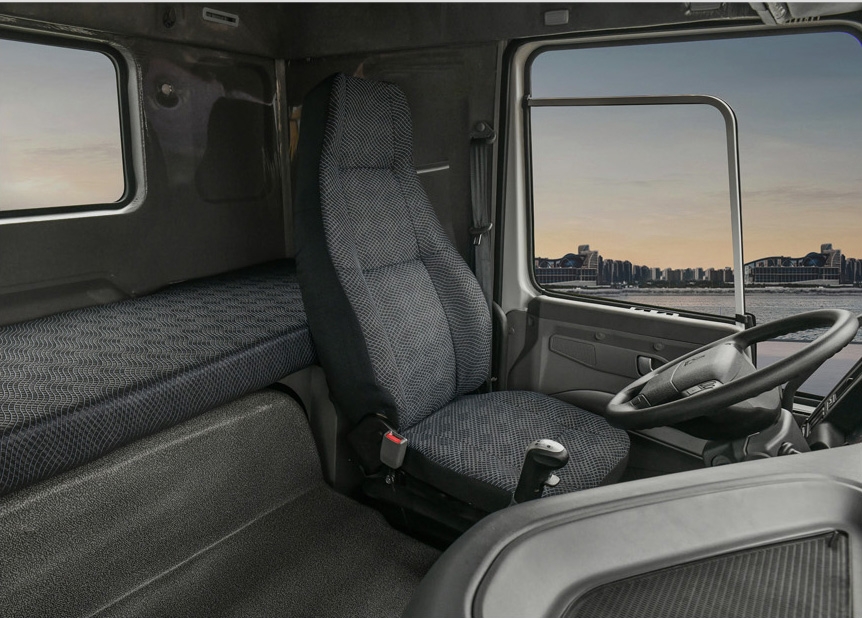

Air Suspension Seat
Air Suspension Seat

The air suspension seat allows drivers to quickly find the optimal sitting position. The integrated design of the seat belt and the seat is ergonomically compliant, avoiding the driver's feeling of suffocation caused by emergency braking during driving.

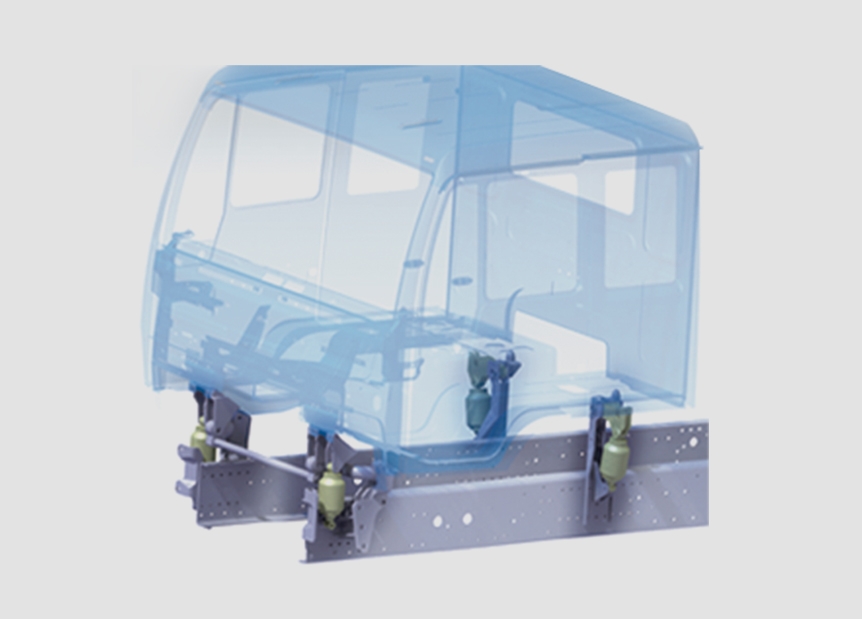

Four-Point Air Suspension
Four-Point Air Suspension

The four-point air suspension provides excellent stability, shock absorption, and comfort, and features a cabin rearward displacement function during collisions, ensuring passenger safety.

  • See the vehicle in full panorama, with every detail at your fingertips!

    Experience high-definition image quality and explore every detail. Click to begin an immersive tour of the vehicle!

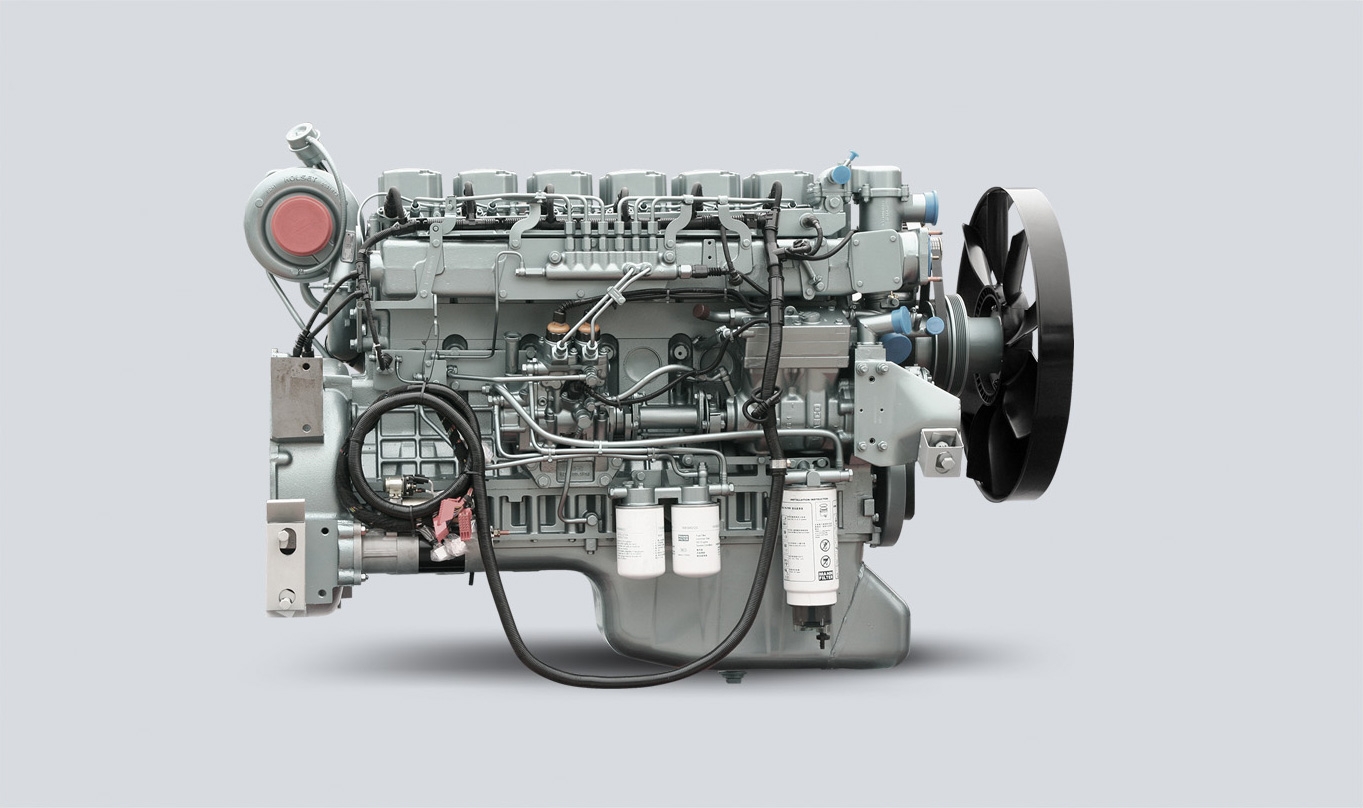

  • Engine

    Utilizing WD615/D10 series and WP10/WP12 series powertrains, the vehicle offers high torque at low speeds and strong power. Parts are highly interchangeable within the same engine series, leading to low maintenance costs and easy repairs. Horsepower range covers 266-430Ps, and emissions cover Euro 2-Euro 5.

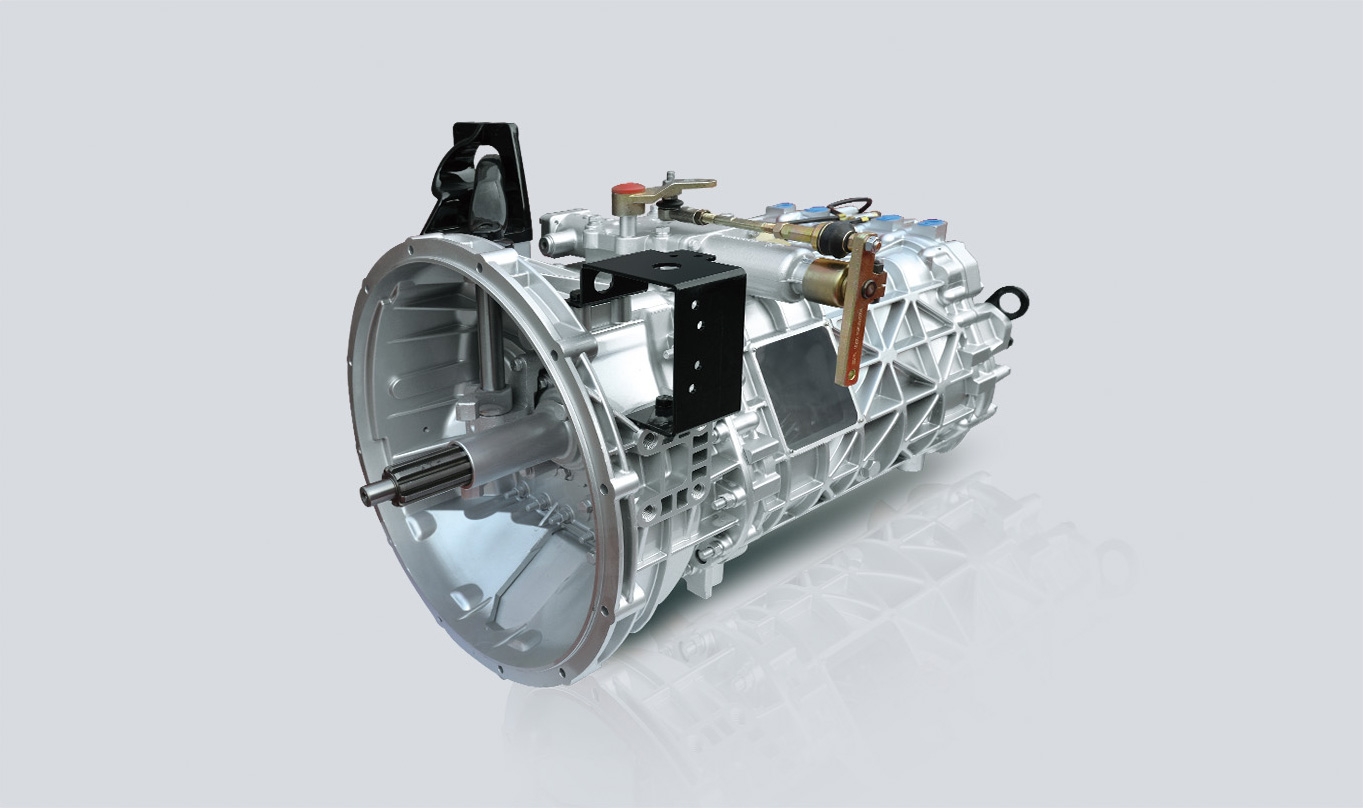

  • Transmission

    Utilizing HW series 10-speed/12-speed transmissions, the transmission adopts a main and auxiliary box structure, the main box is a double countershaft structure, and the auxiliary box is a planetary reduction structure, with strong bearing capacity and reliable structure; Combining forced lubrication and gear splash lubrication, this system provides more thorough lubrication and is suitable for various road conditions. HW-09 speed synchromesh transmission can also be matched, with full synchromesh design, making gear shifting lighter.

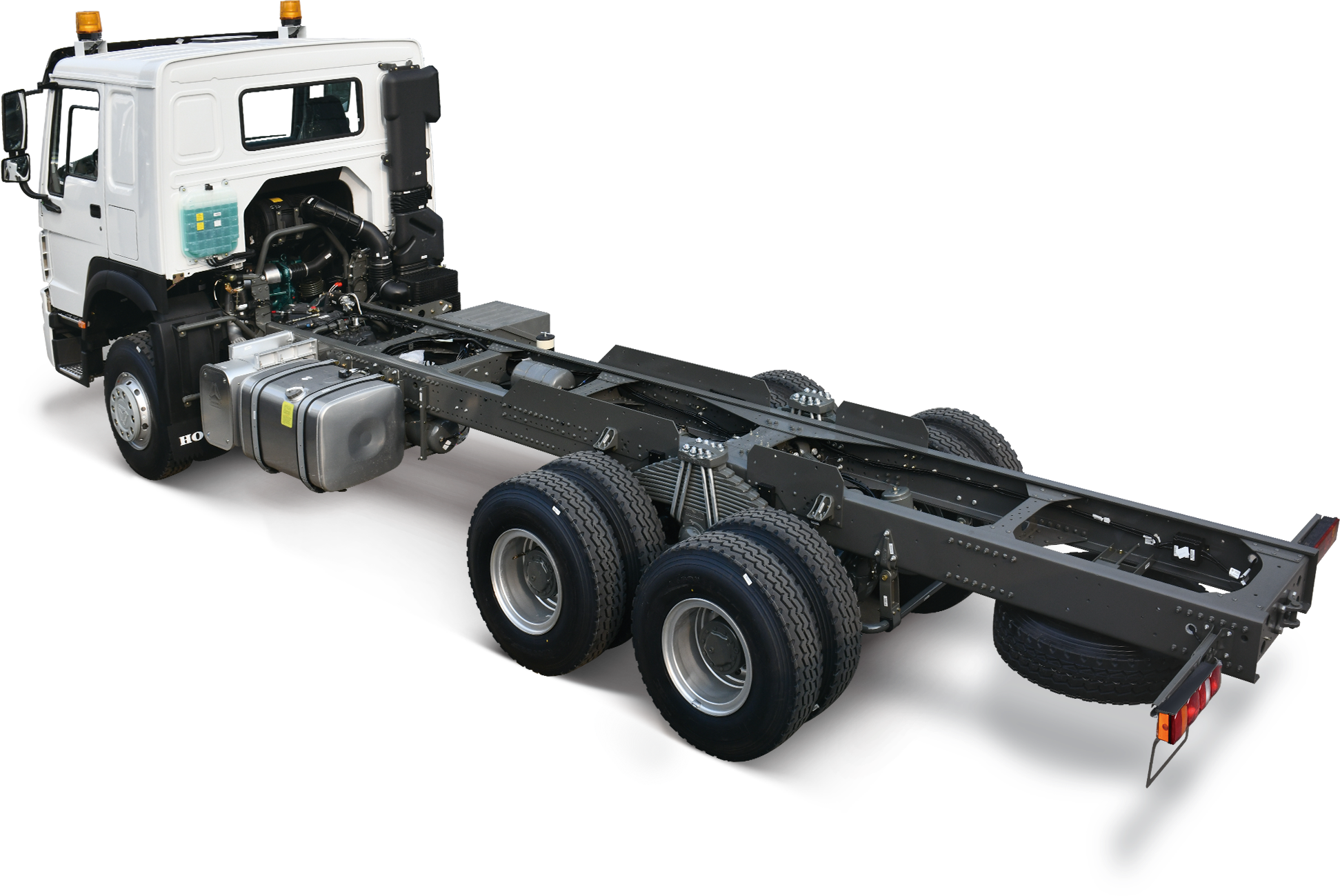

  • Chassis

    The HOWO-7 frame and chassis are made of high-strength steel, which has extremely high torsional stiffness and durability, and can withstand long-term heavy-load transportation tasks.

#
